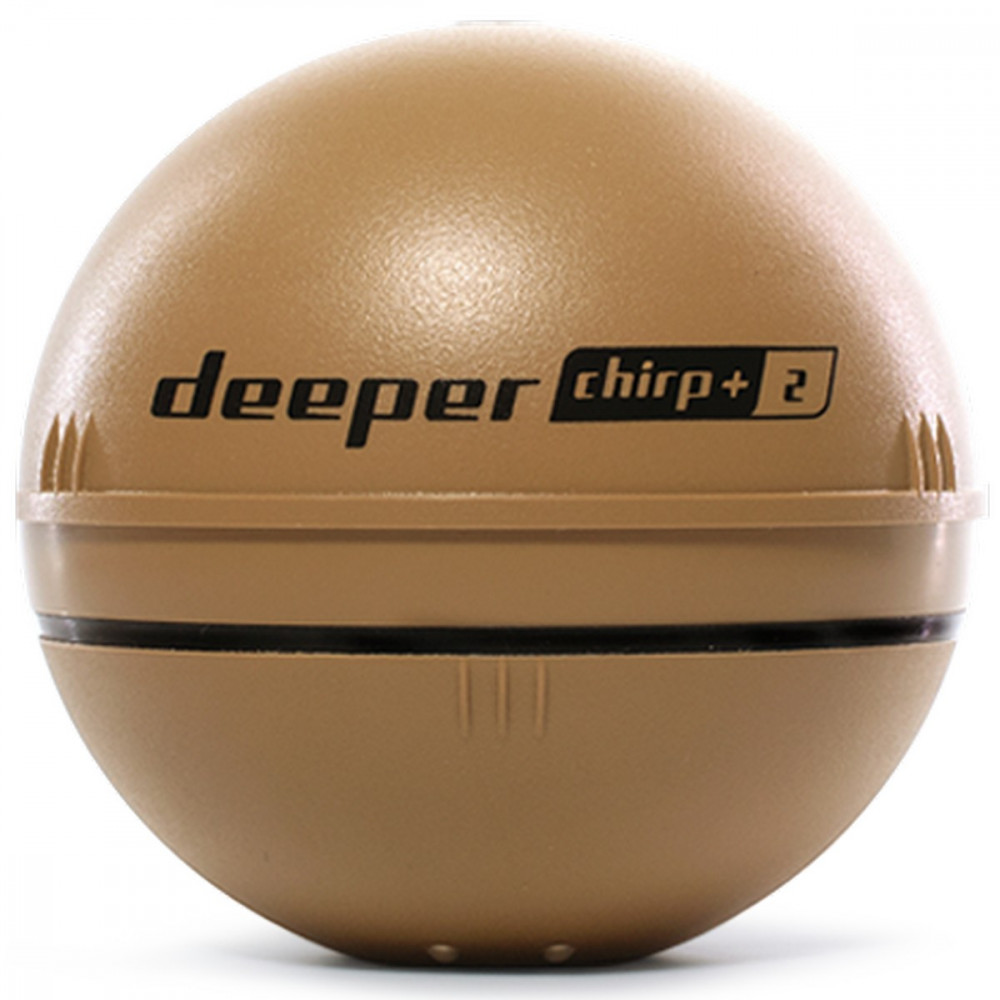

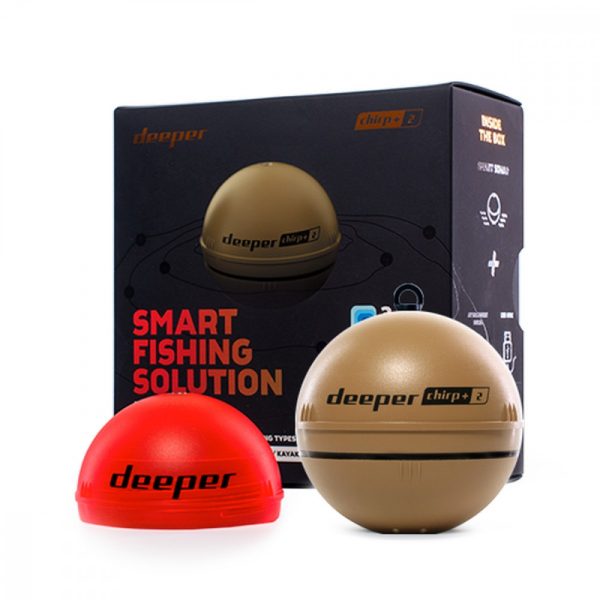

Deeper Smart Sonar Chirp+2 Fish Radar

Deeper Sonar CHIRP+ 2

Paired with the Fish Deeper™ app, the CHIRP+ 2's razor-sharp image and outstanding accuracy provide a fishing experience like never before. Plan, log and analyze your fishing trips and create your own bathymetric maps.

Incredible targeting and depth accuracy

Thanks to the 1 cm inch target measurement accuracy, you can pinpoint the location of the fish species you want to catch, even if they are hiding in the middle of a school of baitfish, or you can track even the smallest baitfish during vertical spinning . Using sonar radar with minimal surface ripple and noise, it can provide accurate data even in very shallow water and identify fish up to 15 cm / 6 inches from the surface of the water. At the other extreme, bottom fish hiding at a depth of up to 100 m will also be recognizable.

Convincing casting range and easy portability

Thanks to the new WiFi module of Deeper CHIRP+ 2, it provides a better and more stable connection in bad weather conditions, up to 120 meters. CHIRP+ 2 is stably connected to your smart device via self-generated Wi-Fi, so you don't need a mobile phone network or internet connection. Thanks to its small size and light weight, it fits easily in the fishing box or even in the pocket.

3 beam frequencies

By scanning an area with a wide beam opening angle (47° -100 kHz), you can discover the fish's favorite places faster. By using a medium aperture angle (20° -240 kHz), you can get an even more accurate picture of the exciting place you have discovered. And with the help of the extremely detailed narrow beam opening angle (47° -100 kHz), you can zoom in on the prey.

Fast-charging, high-performance battery

The Deeper CHIRP+ 2 model combines energy optimization and customizable technologies with 37% extra battery capacity, and is thus capable of up to 15 hours of continuous operation, while weighing only 2 grams more, so it is not only easy to carry, but also incredibly efficient. Up to 20 hours of continuous operation time is available in energy-saving mode. It can be fully charged in just 2 hours.

Product data

Material: ABS housing, titanium inserts

Sound radar type: 3-frequency CHIRP – Narrow CHIRP 675 kHz (beam opening angle 7°), medium CHIRP 240 kHz (beam opening angle 20°), wide CHIRP 100 kHz (beam opening angle 47°)

Target Accuracy: 1cm / 0.4in (Narrow Beam Chirp), 2.4cm / 0.94in (Medium Beam Chirp), 2.4cm / 0.94in (Wide Beam Chirp)

Depth range: 15 cm / 6 inches - 100 m / 330 feet

Sonar scanning speed: Up to 15 frames per second

Sonar Modes: Land Fishing, Boat, Fly Fishing , Feeder , Show Scan Only , Scan Only (No GPS)

Temperature sensor: Built-in temperature sensor (0.2°C accuracy)

Operating temperature: -20°C to 40°C / -4°F to 104°F

GNSS (supported global positioning systems): GPS, GLONASS, Galileo, BeiDou, QZSS

Operating time: Up to 9 hours (with GPS ON) or up to 15 hours (with GPS OFF)

Charging technology: Fast charging, 80% in 60 minutes, 100% in 110 minutes.

Internal battery: Li-ion, 3.8V rechargeable, 1300 mAh

Connection type: wifi

Connection range: stable connection up to a distance of 120 m / 394 feet.
