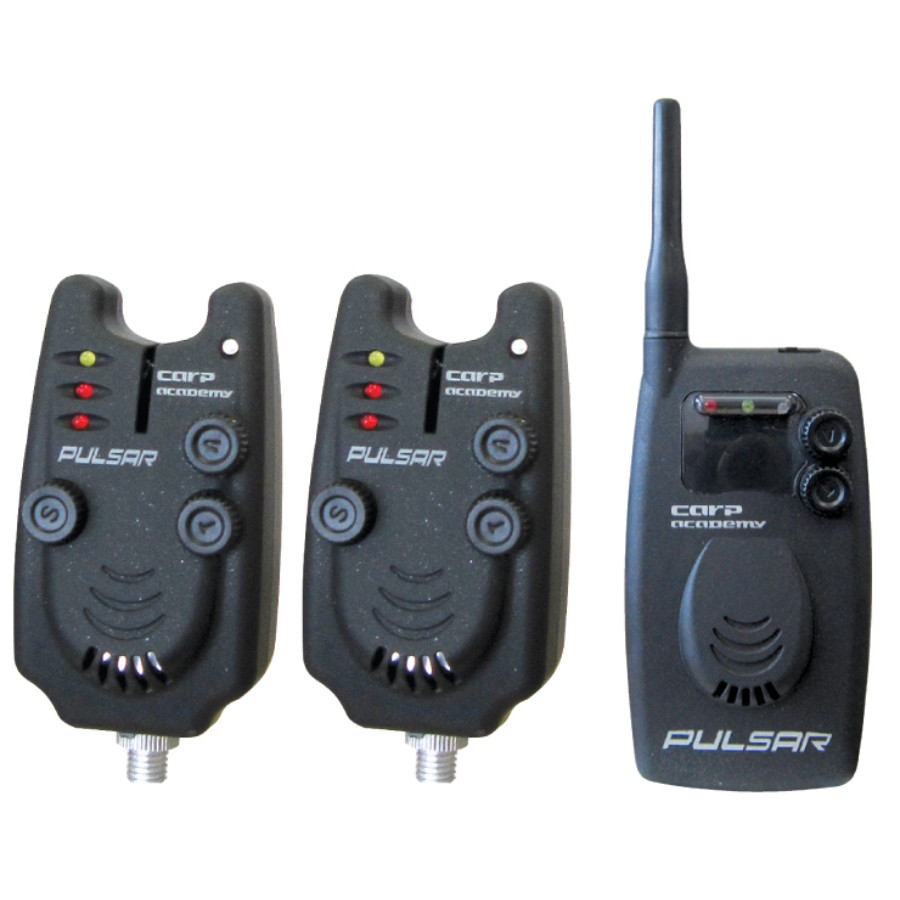

CARP ACADEMY Pulsar electric fish finder 2+1 Electric fish finder

Name: CARP ACADEMY Pulsar electric fish finder 2+1 Electric fish finder
Brand: Carp Academy
SKU: 6315-002
Price: 91.06 EUR
Availability: InStock

Quality Gear for

Your Guaranteed Catch

More Than a Shop:

For Anglers, By Anglers

Gear You Can Trust

for the Moment That Matters

Everything for the Water

, All in One Place

91.06 €

Unit price: 91.06 €/pc

In supplier's stock
A terméket 3 - 5 munkanap alatt beszerezzük és azonnal feladjuk Neked!

Buy with registration and 2.73 € points earn after you collect your delivery!

Article No.:

6315-002

Brand:

Carp Academy

Three-button electric catch indicator.

With built-in battery charge indicator, 20 second catch after signal, 150-300m range.
The set is supplied with a plastic carrying bag.

1. On/Off: insert the 9V batteries into the transmitter units, aclineing to polarity. Check that it is ready for use by pulling the on/off button on the bottom of the transmitter. Also insert the battery into the receiver and adjust its operation by pressing the on/off button on the top of the unit. /The lights will stay on for a few seconds after switching off./

2. V button / Volume adjustment: 4 volumes can be adjusted by turning the V button. The sound will be amplified clockwise.

3. T button / Tone adjustment: 4 tones can be adjusted by turning the T button. The sound is raised aclineing to the clockwise direction.

4. S button /Sensitivity adjustment: 4 sensitivity levels can be set by turning the S button. It is amplified counterclockwise.

5. Programming: the receiver is factory programmed for the transmitters.

6. Range: 150-300 m - depending on terrain

7. Catch indication: the LED of the stick that is caught lights up. At the same time, the LED on the receiver lights up in the same colour. /

Battery low indicator: if the LED of one of the transmitters flashes repeatedly, it indicates a low battery level.

Reprogramming: if you wish to reprogram the transmitters and receivers to a different waveband, you must do the following. If you want to change the transceiver or receiver to a different frequency, you must change the transmitter and receiver settings to another frequency. Then switch on the receiver, then press the program cancel button located above the battery compartment on the rear panel, the green LED on the receiver should light up. The green LED catch indicator should then be switched on.
The green LED on the receiver will light up, indicating that the alignment was successful. Then the LED goes out and the tuned beacon must be switched off immediately. The program cancel button must be pressed again and the next led /yellow/ will light up, for which the yellow led indicator must also be switched on.
Do the same with all the indicators one by one, but make sure that only one indicator is on at a time during the retuning!
Each beacon must be tuned in within 17 seconds, otherwise the radio signal will be lost and the erase button must be pressed again.

Maintenance: always remove the batteries after use and store the kit without batteries. The kit is waterproof. However, if water does get into the internal electronics and the catch indicator starts to light up or beep continuously, remove the batteries and leave the indicator to dry out with the back open.
